MPO Simplex PVC FTTH E2000 G652D Fiber Optic Pigtail

Product Categories
Qingdao Sunet Technologies Co., Ltd.
Contact Now

MPO Simplex PVC FTTH E2000 G652D Fiber Optic Pigtail

  • 1
  • 2

Brand Name : SUNET/OEM

Model Number : Sc/Apc

Certification : ISO9001/ISO14001

Place of Origin : Qingdao, China

MOQ : 1 piece

Price : usd 1-2 per piece

Payment Terms : L/C, T/T, Western Union, D/A, D/P

Supply Ability : 100000 pieces per week

Delivery Time : 3-8 days

Packaging Details : 1 piece in 1 bag package

Fiber type : G652D/G657A1/G657A2/Customized

Connector type : SC/APC

Insertion loss : ≤0.3dB

Jacket Material : PVC/LSZH

Length : 1m/2m/3m/Customized

Color : Yellow/Orange/Aqua/customized

Fiber count : Simplex

Quality control : 100% test before shipping

Contact Now

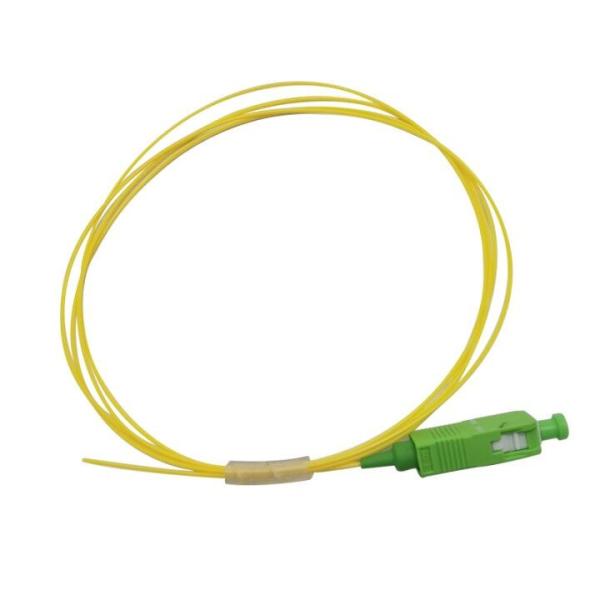

SM SX 1 Meter SC/APC G652D/G657A PVC Fiber Optic Pigtail

Pigtail Description

Optic Fiber Pigtail can provide a quick and easy termination of fibers in the field. Options are available for 900 micron allowing the installer to terminate and make connection at equipment and fiber patch panels. Our quick connector system removes any requirement for epoxy. Adhesives or costly curing ovens. All the key steps have been done in factory to ensure every connection is excellent.

Pigtail Feature

1. Price-Competitive

2. Low Insertion Loss & PDL

3. Factory-terminated and Tested

4. Fiber Options:G.652/G.657/OM1/OM2/OM3 and PM Panda Fiber

5. Connector Options :FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP

6. Polishing Options:PC/UPC/APC

7. Feature Connector with Ceramic Ferrules

Pigtail Application

1. Access Network

2. Telecom/CATV

3. Systems FTTX

Pigtail Specification

Parameters

Standard Fiber Cable Assemblies

Fiber Type

SM(G652/G657A1/G657A2)

MM(OM1/OM2/OM3)

Jacket Materials

LSZH/PVC

Connector Type

SC/LC/ST/LC/MPO/E2000

Ferrule Materials

Ceramic

Testing Wavelengths

1310±30/1550±30nm

850±30/1300±30nm

Insertion Losss(dB)TIA/EIA-455-107

≤ 0.2dB(PC/UPC/APC)

≤ 0.3dB(PC/UPC)

Return Loss(dB)TIA/EIA-455-107

≥45dB(PC/UPC) ≥55dB(APC)

≥35dB(PC/UPC)

Exchangeability

≤ 0.2dB

Cable Assemblies

Pigtail/Simplex

Operating Temperature (° C)

-10~ + 70

Storage Temperature (° C)

-40 ~ +85

Package

1unit/bag

*All values specified are with connectors.


Product Tags:

G652D Fiber Optic Pigtail



E2000 Fiber Optic Pigtail



MPO fiber optic pigtail cables


China MPO Simplex PVC FTTH E2000 G652D Fiber Optic Pigtail wholesale

MPO Simplex PVC FTTH E2000 G652D Fiber Optic Pigtail Images
